Asphalt mixture linear shrinkage coefficient tester KSS-09A

Description
Inquiry

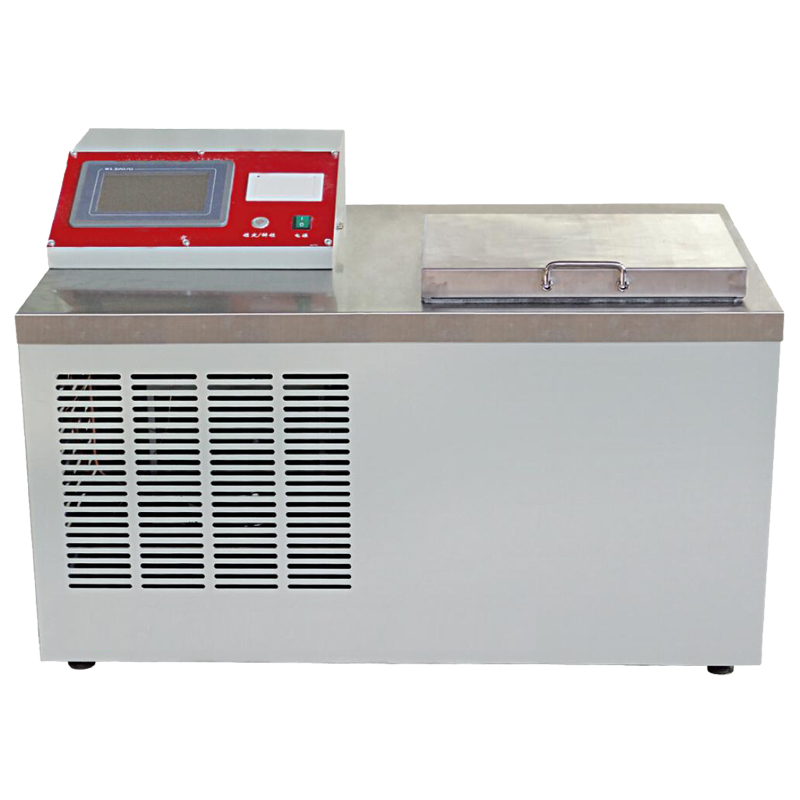

Asphalt mixture linear shrinkage coefficient tester KSS-09A

Asphalt mixture linear shrinkage coefficient tester KSS-09A.jpg

1. Introduction

l Used to determine the linear shrinkage coefficient of asphalt mixtures

l Meet with JTG E20 standard test methods of bitumen and bituminous mixtures for highway engineering

l Auto cooling and temperature maintaining functions, working temperature can be -30℃. Three samples can be tested each time.

l Equip with full color LCD touch screen, easy to operate. The screen can display test parameters, calculate test results and display test curves. The test data and curves can be saved in the controller.

2.specifications

No.	Item	Spec.
1	Lowest temperature	-30℃
2	Temperature control accuracy	±0.1℃
3	Size of water tank	310x220x180mm
4	Length measuring resolution	0.001mm
5	Length measuring range	12.7mm
6	Total power	1500W
7	Voltage	220V,50Hz
8	Outside dimension	100x600x700mm
9	Weight	100kg
