Asphalt mixture triaxial testing machine KSZ-10A

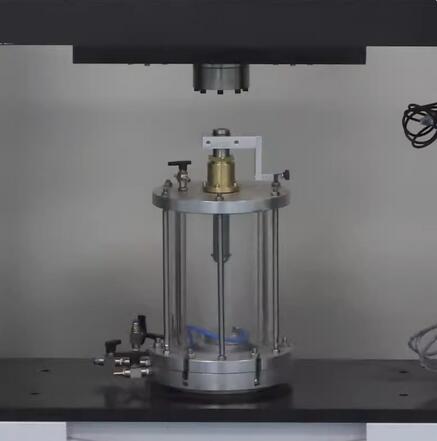

Asphalt mixture triaxial testing machine KSZ-10A.jpg

1. Introduction

l Comply with JTG E20 Highway Engineering Asphalt and Asphalt Mixture Test Specification, used to determine the shear strength of asphalt mixtures under specified temperature and loading conditions.

l The testing machine consists of main loading frame, water bath (with external circulation), confining pressure control system, volume transfer pipe, pressure chamber, air compressor, and measurement and control system.

l The confining pressure control system, using air compressor as pressure source is to achieve constant confining pressure. The external circulating water bath can fill water to pressure chamber and maintain constant temperature.

l The control system adopts a 7-inch color picking touch screen, which is easy to operate.

2.specifications

No.	Item	Spec.
1	Rated load	100KN
2	Servo motor of main loading frame	2.3KW,220V/50Hz
3	Power of constant water bath	220V/50Hz
4	Power of control system	220V/50Hz
5	Crossbeam speed	0-100mm/min
6	Crossbeam stroke	0-800mm
7	Max. pressure of pressure chamber	1Mpa
8	Load cell accuracy	0.5%
9	Displacement sensor measuring range	50mm
10	Displacement resolution	0.001mm
11	Digital dial gauge	25.4mm
12	Distance between columns	450mm
13	Dimension of main loading frame	1000x800x1800mm
14	Overall power	5KW
15	Weight of main loading frame	350kg
