1.introductions

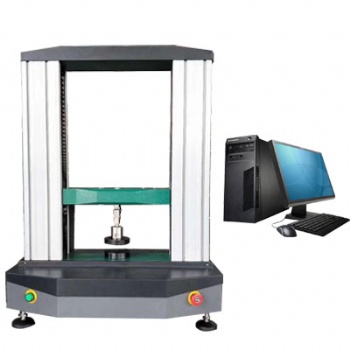

The separation membrane peeling tensile testing machine can be used to test the tensile strength, breaking force, elongation, peeling force, etc. of the release film. The release film release force tensile tester is controlled by computer software, which can display the test force, test curve, test time, displacement or deformation in real time, automatically save the test results after the test, and can connect to a printer to print the test report.

2. relative test method of separation membrane peeling test

GB/T 2792 measurement of peel adhesion properties for adhesive tapes

ISO 29862 self adhesive tapes --- determination of peel adhesion properties

ASTM D3330 standard test method for peel adhesion of pressure-sensitive tape

GB/T 2791 adhesives, T peel strength test method for a flexible-to-flexible test specimen assembly

FTM1-FINAT test method 180°peeling force test

3. Relative manufacturing and calibrating test method for separation membrane peeling tensile testing machine

GB/T2611 general requirements for testing machines

GB/T16491 electronic universal testing machine

GB/T16825.1 verification of static uniaxial testing machines --- part 1: tension / compression testing machines --- verification and calibration of the force measuring system

ISO7500-1 metallic materials--- verification of static uniaxial testing machine --- part 1: tension / compression testing machines --- verification and calibration of the force measuring system

ASTM E4 standard practice for force verification of testing machines

EN 10002-2 tensile testing of metallic materials --- part 2: verification of the force measuring system of the tensile testing machine

4.specifications
