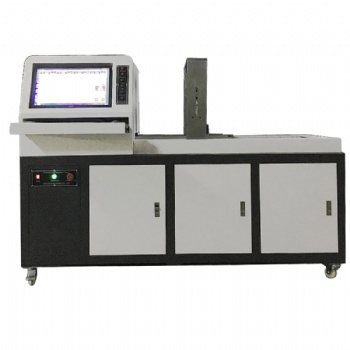

WT-6058F JIS friction dyeing firmness testing machine

WT-6058F friction dyeing firmness testing machine.pdf

1. Introductions

The JIS friction dyeing firmness testing machine is suitable for testing the dyeing firmness of textile dyeing, leather and other products. During testing, tie a dry or wet white cotton cloth onto the surface of the friction hammer of the JIS friction dyeing firmness tester, rub the colored test piece with a certain weight and number of times, and evaluate the dyeing firmness level against the gray scale.

2. Relative test methods

JIS-L0801、JIS-L0849 type II、JIS-L0823、JIS-L1006、JIS-L1084、K6328、P8236、JIS P813

3.specifications

4. Features

4.1 Surface treatment of the body: Using DuPont powder from the United States and electrostatic spray painting technology, it is cured at high temperature of 200 ℃ to ensure long-lasting color fastness.

4.2 Mechanical components are composed of non corrosive structural aluminum and stainless steel materials;

4.3 Precision drive motor, running smoothly and with low noise;

4.4 LED-SLD806 integrated display control box, menu style operation mode

4.5 High precision bearings are selected for smooth and stable rotation, with a long service life;

4.6 One click automatic testing, independent control, simple and convenient operation;

4.7 Simultaneous testing at multiple workstations, with individually fastened fixtures;
