1.Size of concrete specimens for flexural strength test
Concrete cubic specimen: 150X150X600mm, 150X150X550mm, 100X100X400mm or others
2. Brief introduction of concrete flexural strength test procedure
1) Wipe clean all testing machine bearing surfaces and remove any loose grit or other extraneous material from the surfaces of the specimen that will be in contact with the rollers.
2) Place the concrete test specimen in the testing machine, correctly centered and with the longitudinal axis of the specimen at right angles to the longitudinal axis of the upper and lower rollers.
3) Select a constant rate of stress and load to the concrete test specimen until break. Record the maximum load indicated and report a fracture if it is outside the loading rollers.
3.Relative test method
GB/T 50081 standard for test method of mechanical properties on ordinary concrete
ASTM E74 Practice of Calibration of Force-Measuring Instruments for Verifying the Force Indication of Testing Machine
ISO 1920-4 Testing of Concrete- Part 4: Strength of hardened concrete
ASTMC78/C78M Standard Test Method for Flexural Strength of Concrete(Using Simple Beam with Third-Point Loading)
BS EN 12390-5 Testing hardened concrete Part 5: Flexural strength of test specimens
4. Diagram of concrete flexural strength test

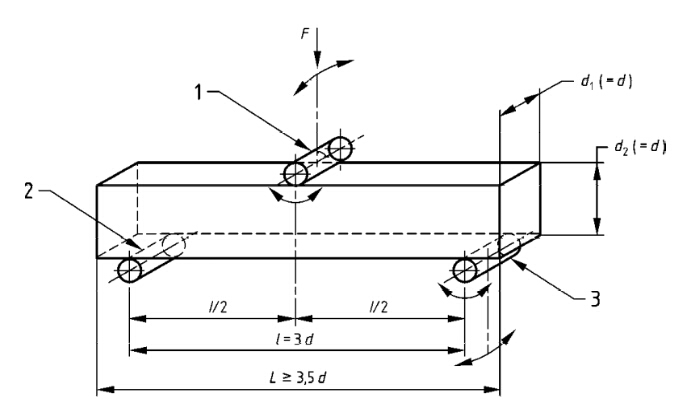

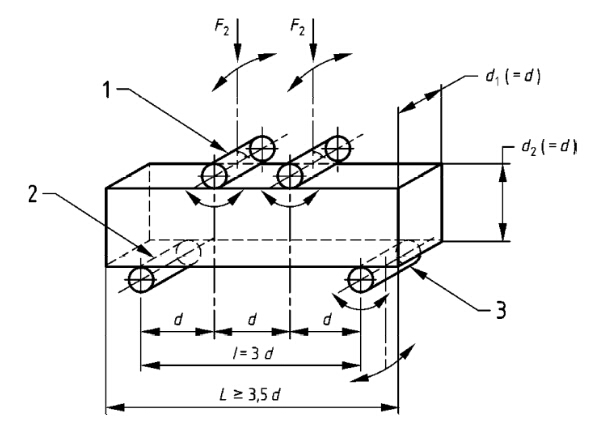

center point loading two point loading
(3-point flexure) (4-point flexure)
